Description
ENORM hook – weld-on type EAHK.
JDT hooks are designed in such a way that in case of overload they do not break brittle, but hook opening visually increases and lets the load slowly slide down.

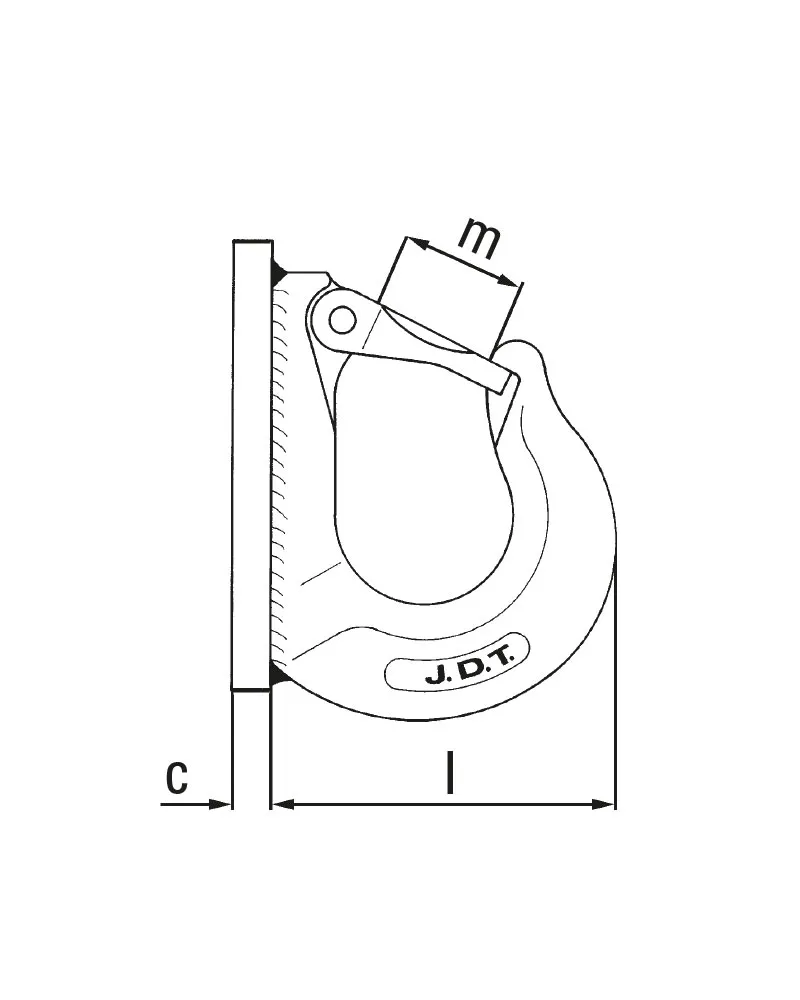

measurements and weight
| Code | WLL | Weight | Ident no. | Dowload 3D | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| [t] | a [mm] |
b [mm] |
c [mm] |
h [mm] |
l [mm] |
m [mm] |
[kg] | ||||
| EAHK 6 | 1,4 | 5 | 40 | 10 | 90 | 68 | 22 | 0,61 | 0362706000 | ||
| EAHK 8 | 2,5 | 5 | 50 | 10 | 115 | 90 | 30 | 1,2 | 0362708000 | ||
| EAHK 10 | 4,0 | 8 | 60 | 15 | 140 | 105 | 37 | 2,3 | 0362710000 | ||
| EAHK 13 | 6,7 | 8 | 70 | 15 | 175 | 137 | 47 | 3,9 | 0362713000 | ||
| EAHK 16 | 10,0 | 8 | 80 | 15 | 210 | 140 | 51 | 5,65 | 0362716000 |
