Description

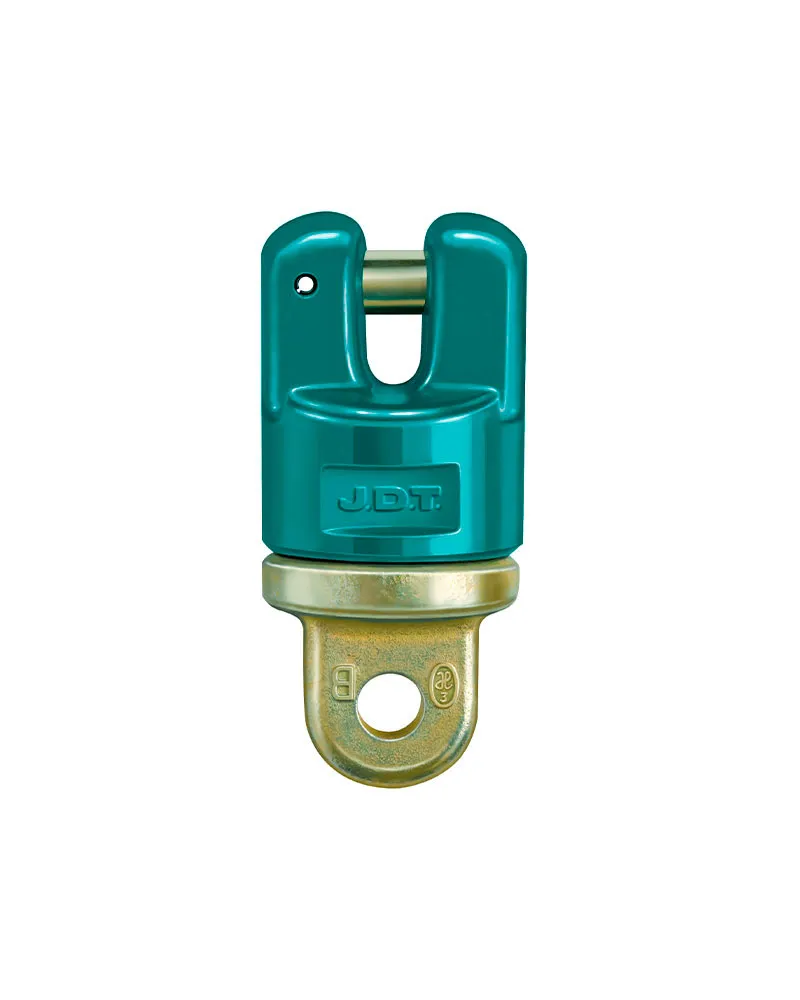

ENORM Special swivel with ball bearing EN 1677-1 for chain slings EN 818-4 and it is suitable for all clevis heads of JDT-Assembling-System.
The special swivel is rotable under load.

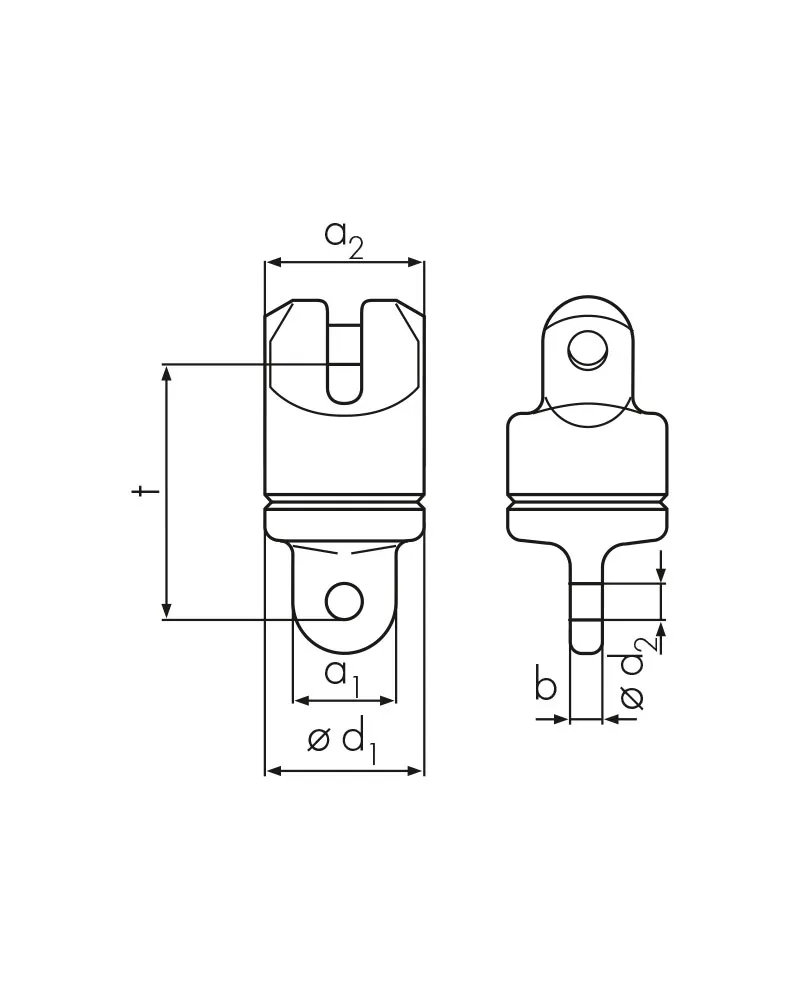

measurements and weight
| Code | WLL | Weight | Ident no. | Download 3D | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| [t] | a1 [mm] |
a2 [mm] |
b [mm] |
Ød1 [mm] |
Ød2 [mm] |
t [mm] |
[kg] | ||||
| ENORM EWGO 6 | 1,4 | 20 | 36 | 6 | 36 | 7,7 | 51 | 0,3 | 0352406000 | ||
| ENORM EWGO 8 | 2,5 | 26 | 43 | 8 | 41 | 10,6 | 56 | 0,4 | 0352408000 | ||
| ENORM EWGO 10 | 4,0 | 35 | 52 | 10 | 51 | 13,2 | 73 | 0,9 | 0352410000 | ||
| ENORM EWGO 13 | 6,7 | 43 | 65 | 13 | 59 | 17 | 88 | 1,5 | 0352413000 |
