Description

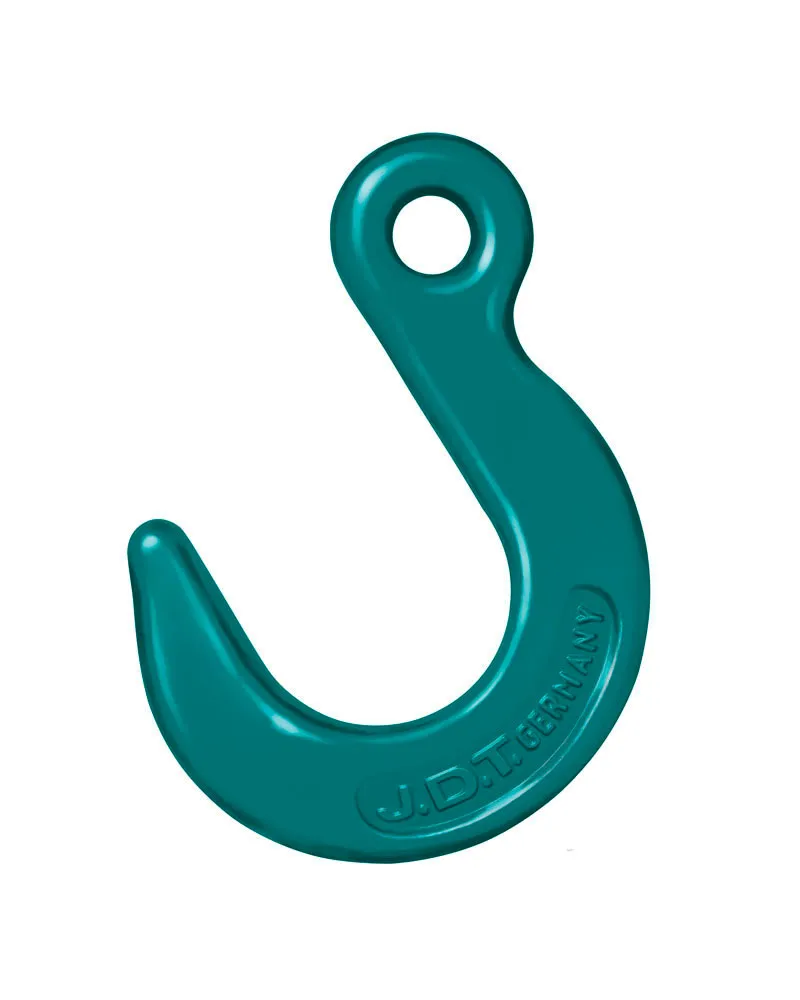

ENORM foundry hook EGO acc. to EN 1677-2. JDT hooks are designed in such a way that in case of overload they do not break brittle, but hook opening visually increases and lets the load slowly slide down.

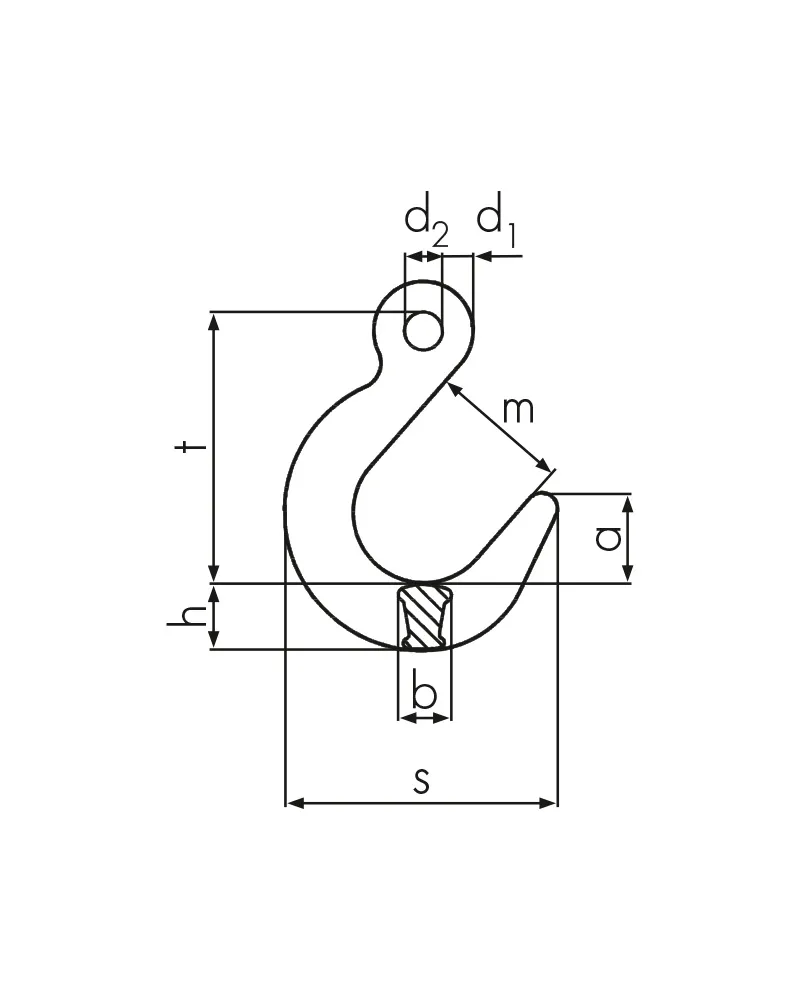

measurements and weight
| Code | WLL | Weight | Ident no. | Download 3D | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [t] | a [mm] |
b [mm] |
d1 [mm] |
d2 [mm] |
h [mm] |
m [mm] |
s [mm] |
t [mm] |
[kg] | ||||
| EGO 6 | 1,4 | 30 | 20 | 10 | 13 | 26 | 50 | 97 | 95 | 0,5 | 0362906000 | ||
| EGO 8 | 2,5 | 40 | 25 | 12 | 18 | 32 | 63 | 120 | 121 | 1,0 | 0362908000 | ||
| EGO 10 | 4,0 | 49 | 32 | 16 | 20 | 38 | 75 | 147 | 145 | 1,9 | 0362910000 | ||
| EGO 13 | 6,7 | 58 | 39 | 20 | 25 | 43 | 87 | 170 | 175 | 3 | 0362913000 | ||
| EGO 16 | 10,0 | 68 | 45 | 24 | 34 | 54 | 98 | 200 | 204 | 5,2 | 0362916000 | ||
| EGO 18/22 | 12,5 | 83 | 56 | 32 | 46 | 65 | 118 | 254 | 250 | 10,1 | 0362922000 |
