Description

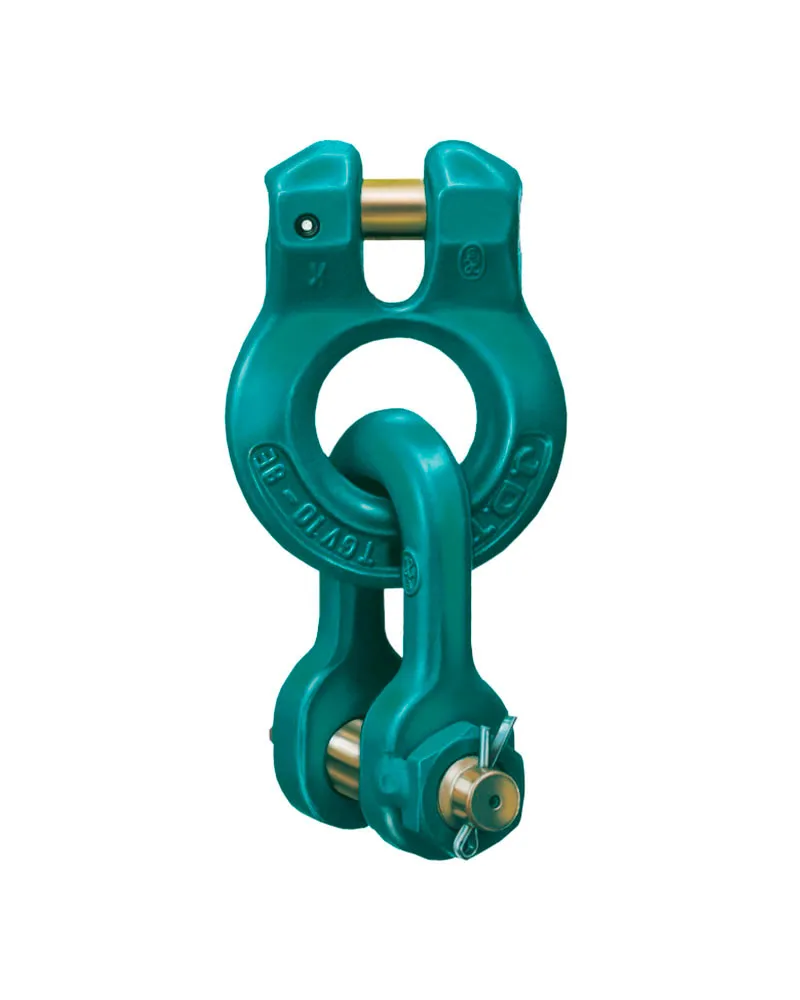

ENORM drop-forged Clevis connector with shackle EGVS.
Manufactured acc. to EN 1677-1.

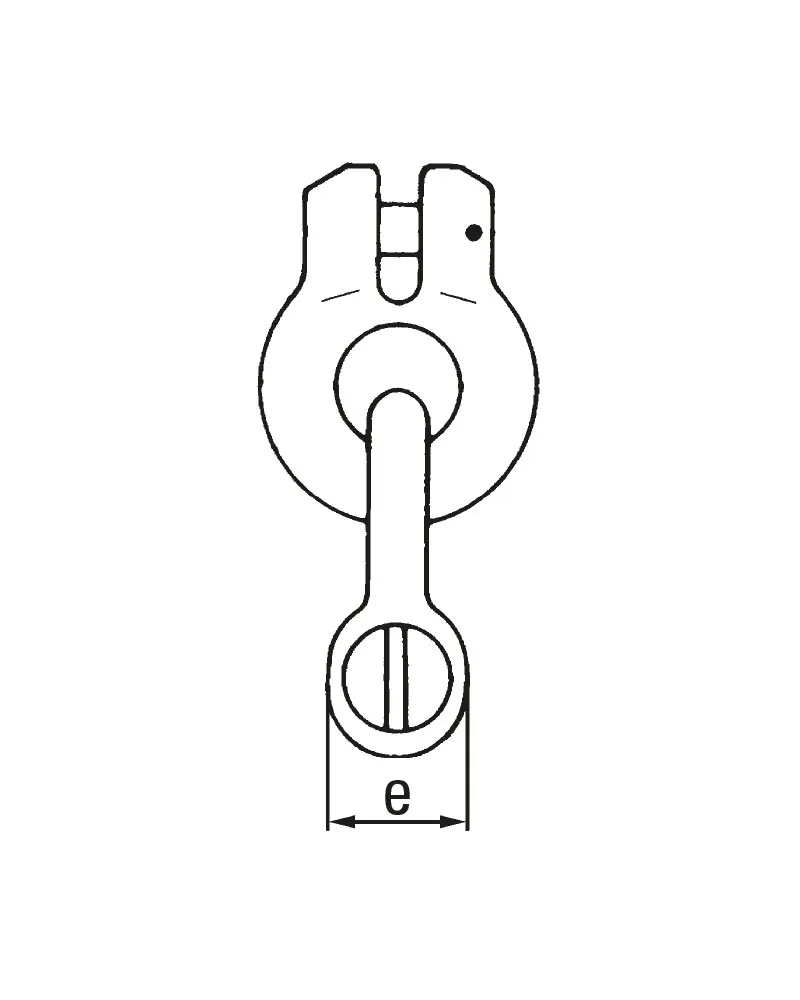

measurements and weight
| Code | WLL | Weight | Ident no. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| [t] | a [mm] |
b [mm] |
b1 | Ød | e Ød |
t Ød |
[kg] | ||||
| ENORM EGVS 10 | 4,0 | 23 | 49 | 31 | 16 | 31 | 100 | 0,8 | 0352010000 | ||
| ENORM EGVS 13 | 6,7 | 27 | 61 | 37 | 20 | 38 | 124 | 1,6 | 0352013000 | ||
| ENORM EGVS 16 | 10,0 | 34 | 76 | 43 | 24 | 48 | 151 | 3 | 0352016000 | ||
| ENORM EGVS 18 | 12,5 | 40 | 88 | 50 | 27 | 56 | 173 | 4,5 | 0352018000 |
