Description

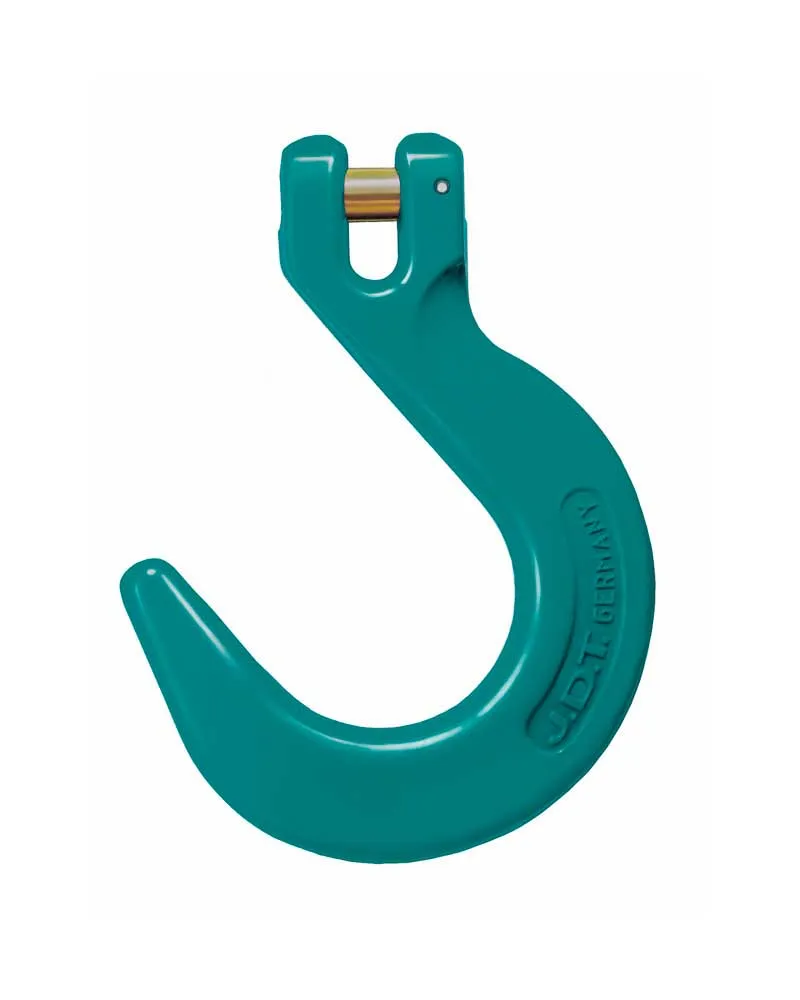

ENORM foundry hook EWHG acc. to EN 1677-2. JDT hooks are designed in such a way that in case of overload they do not break brittle, but hook opening visually increases and lets the load slowly slide down.
measurements and weight
| Code | WLL | Weight | Ident no. | Download 3D | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| [t] | a [mm] |
b [mm] |
h [mm] |
m [mm] |
t [mm] |
[kg] | ||||
| EWHG 18 | 12,5 | 77 | 53 | 54 | 114 | 218 | 7,8 | 0362318000 | ||
| EWHG 22 | 19,0 | 90 | 56 | 65 | 124 | 237 | 11,9 | 0362322000 |
