Description

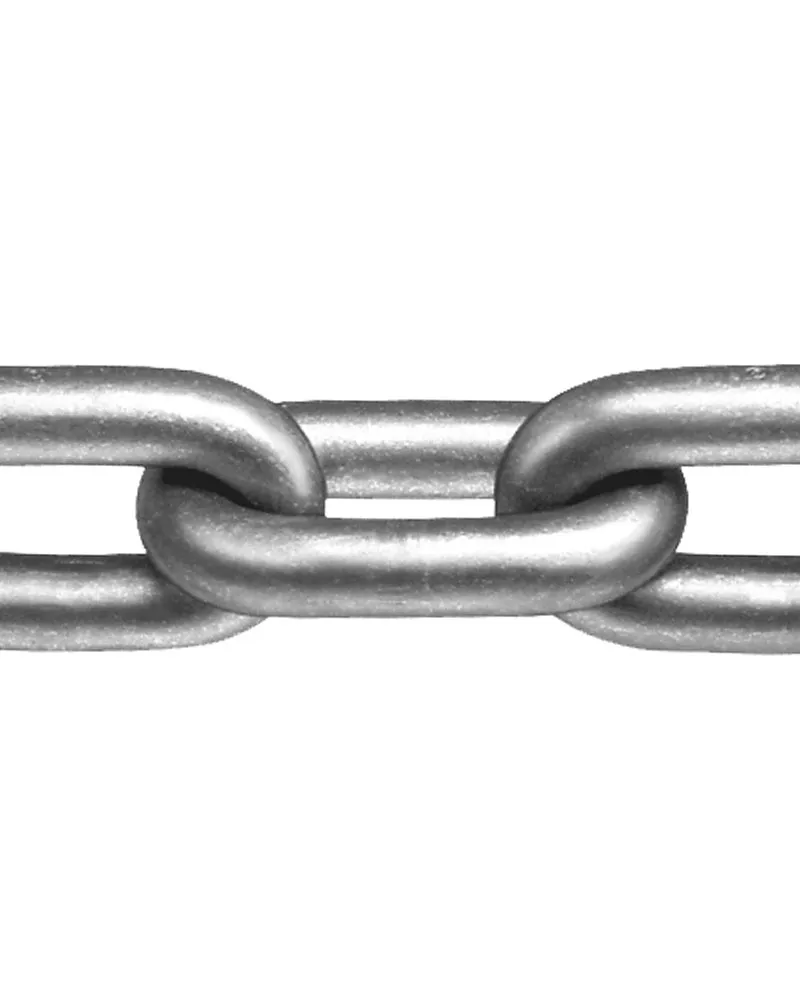

Round link chains acc. to DIN 22252 can be used as mining chains, conveyor chains, plough chains or bucket elevator chains.
Also available in HO material specifically developed by JDT with improved mechanical properties and thus longer service life.
Measurements and weight
| nominal size | diameter | pitch | width | width | weight |
|---|---|---|---|---|---|
| d x t [mm] |
dm [mm] |
t [mm] |
b1 min. [mm] |
b2 max. [mm] |
[kg/m] |
| 26 x 92 | 26±0,8 | 92±0,9 | 30 | 85 | 14 |
| 30 x 108 | 30±0,9 | 108±1,1 | 34 | 97 | 17,8 |
| 34 x 126 | 34±1,0 | 126±1,3 | 38 | 109 | 23 |
| 38 x 137 | 38±1,1 | 137±1,4 | 42 | 121 | 28,8 |
| 42 x 137 | 42±1,1 | 137±1,4 | 48 | 139 | 37 |
