Description

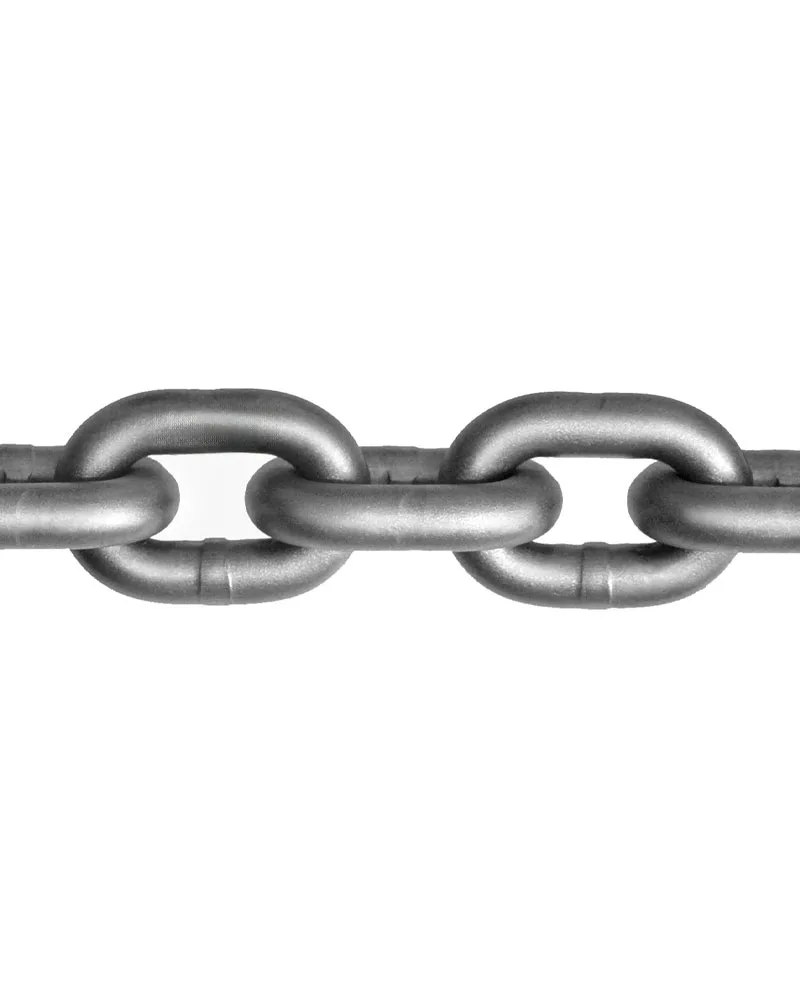

With Poultry conveyor chains, you rely on maximum precision, durability, and safety in your production. Whether hardened, electro-galvanized and sealed, or made of high-grade stainless steel (AISI 316L) – the conveyor chains are super-calibrated, supplied with an inspection certificate according to EN 10204-3.1, and designed for maximum reliability in continuous operation. Thanks to modern heat treatment and a special surface finishing, the Poultry chains offer outstanding corrosion resistance and meet all requirements of demanding systems.
Electro-galvanized and sealed
measurments and weight
| Code | nominal size | inside width | outside width | proof force | breaking force | weight | Ident.-no. |
|---|---|---|---|---|---|---|---|
| [mm] | w1 min. [mm] |
w2 max. [mm] |
(MPF) [kN] |
(BF) [kN] |
[kg] | ||
| PFK 8 | 8 x 25,4 | 9,6 | 26,0 | 36,0 | 62,0 | 1,35 | 0312908000 |
| PFK 8 | 8 x 38 | 13,5 | 29,8 | 36,0 | 62,0 | 1,25 | 0312908001 |
| PFK 9 | 9 x 28 | 11,2 | 31,3 | 49,0 | 80,0 | 1,6 | 0312909000 |
| PFK 10 | 10 x 38 | 12,5 | 34,0 | 61,0 | 100,0 | 2,0 | 0312910000 |
Stainless steel
measurments and weight
| Code | nominal size | inside width | outside width | proof force | breaking force | weigth | Ident.-No. |
|---|---|---|---|---|---|---|---|
| [mm] | w1 min. [mm] |
w2 max. [mm] |
(MPF) [kN] |
(BF) [kN] |
[kg] | ||
| PFK-E 8 | 8 x 25,4 | 9,6 | 26,0 | 32,0 | 50,0 | 1,35 | 0313008000 |
| PFK-E 8 | 8 x 38 | 13,5 | 29,8 | 32,0 | 50,0 | 1,25 | 0313008001 |
| PFK-E 9 | 9 x 28 | 11,2 | 31,3 | 40,0 | 64,0 | 1,6 | 0313009000 |
| PFK-E 10 | 10 x 38 | 12,5 | 34,0 | 50,0 | 80,0 | 2,0 | 0313010000 |
