Description

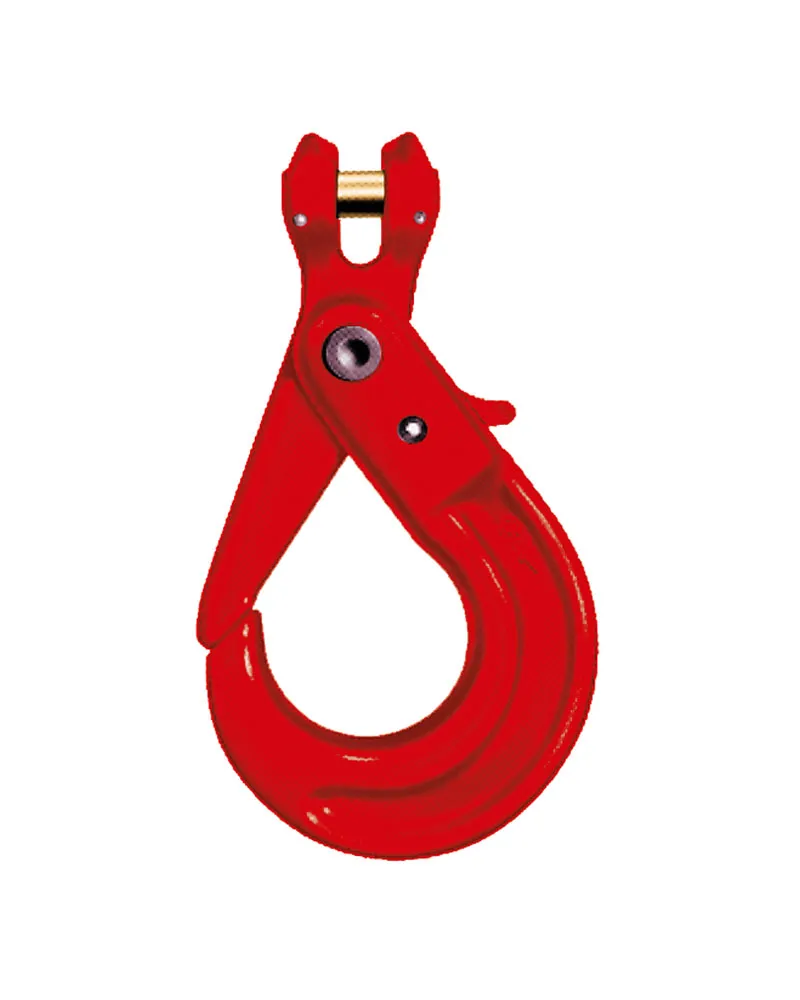

NORM8 clevis sling automatic hook TAHG acc. to EN 1677-3 can be load directions. The design of the hook prevents the abrupt breaking of the hook in case of overload.

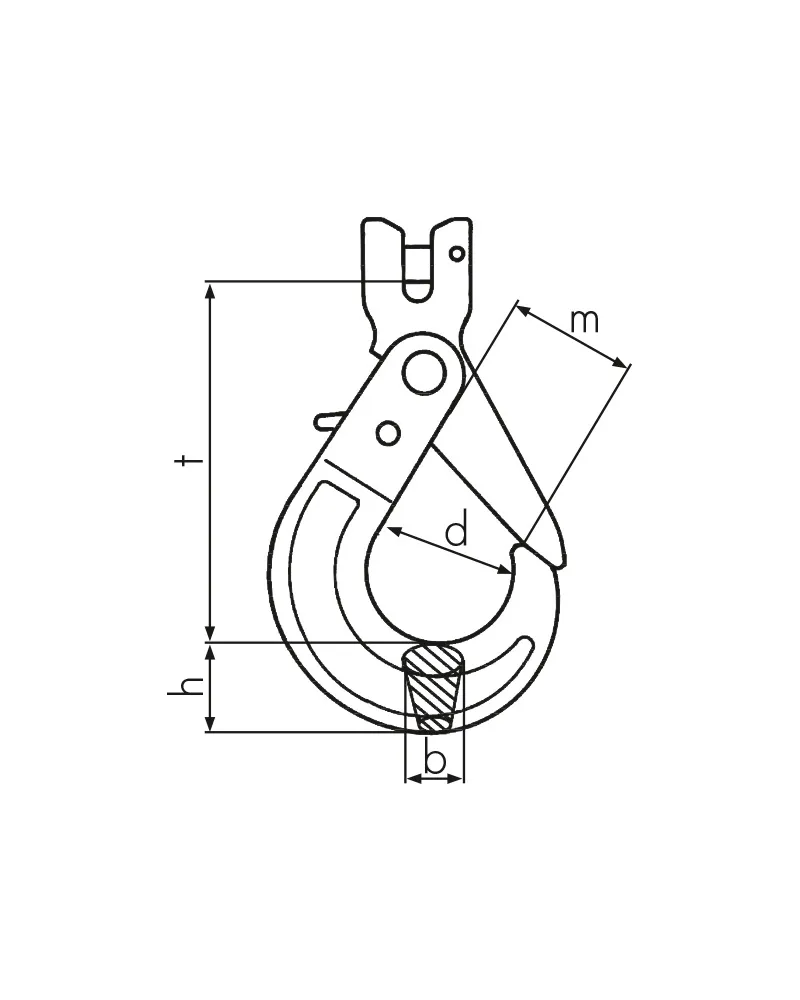

measurements and weight
| Code | WLL | Weight | Ident no. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [t] | b [t] |
d [t] |
m [t] |
h [t] |
t [t] |
[kg] | ||||||
| TAHG 8 | 2,0 | 20 | 43 | 41 | 26 | 117 | 0,9 | 0363108000 | ||||
| TAHG 10 | 3,15 | 25 | 56 | 51 | 31 | 140 | 1,5 | 0363110000 | ||||
| TAHG 13 | 5,3 | 33 | 68 | 59 | 40 | 178 | 2,8 | 0363113000 | ||||
| TAHG 16 | 8,0 | 39 | 83 | 71 | 51 | 221 | 5,9 | 0363116000 |
