Description

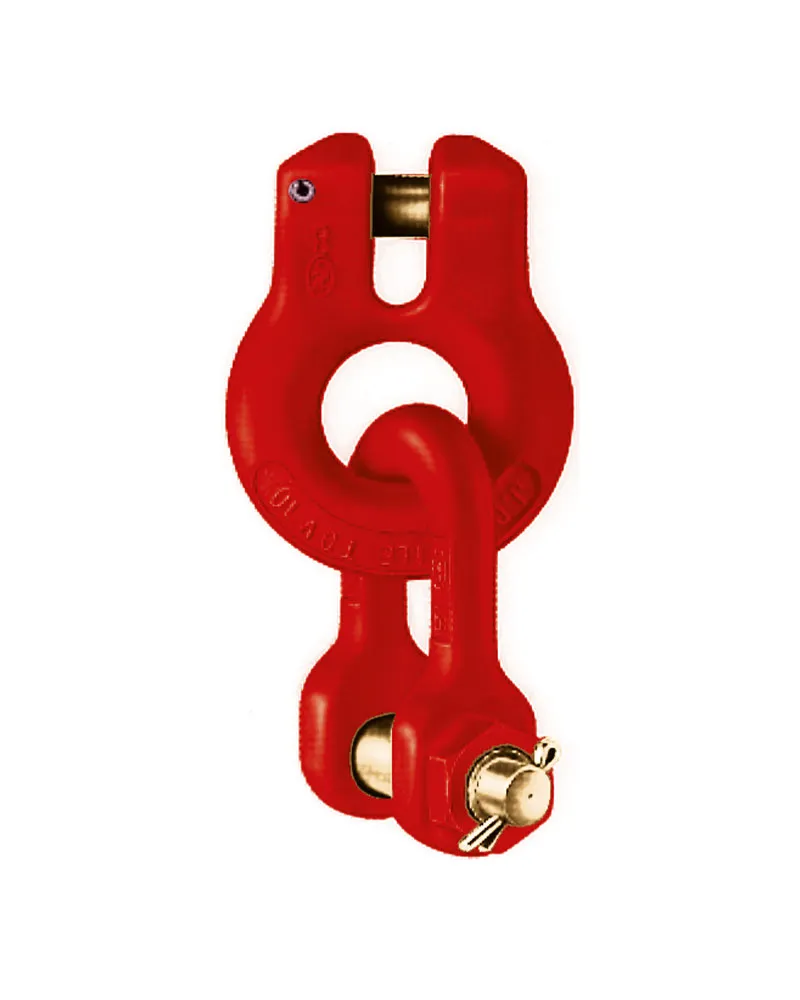

NORM8 clevis connectors with shackle.
Manufactured acc. to EN 1677-1.

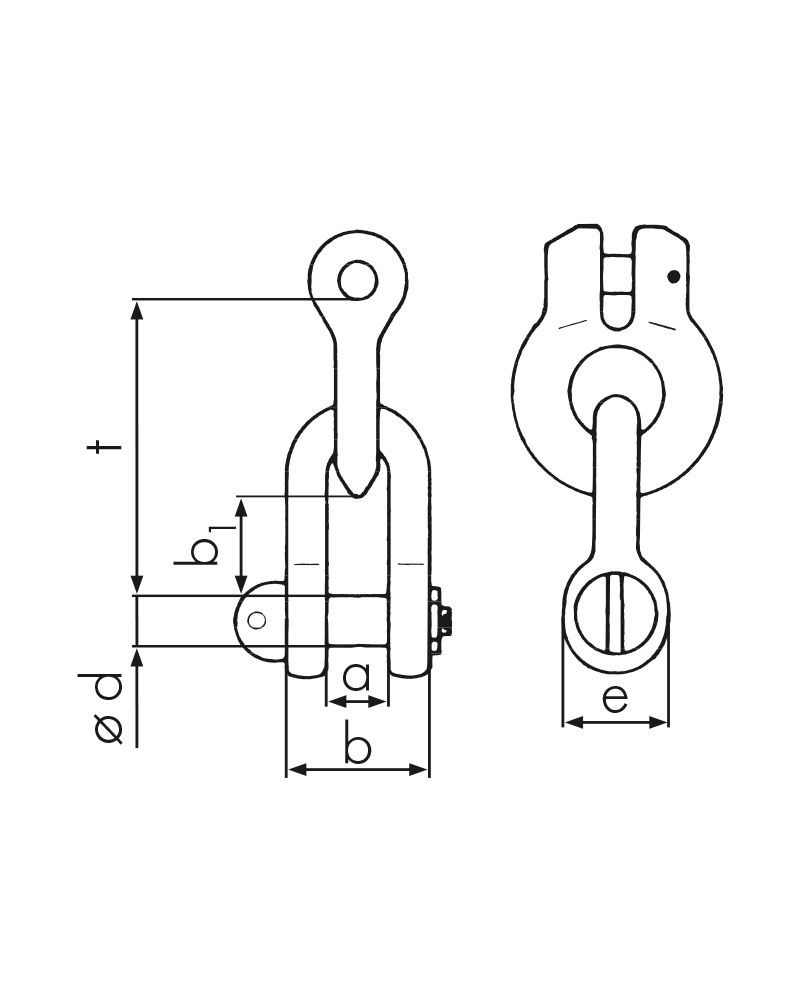

measurements and weight
| Code | WLL | Weight | Ident no. | Download 3D | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| [t] | a [mm] |
b [mm] |
b1 [mm] |
ød [mm] |
e [mm] |
t [mm] |
[kg] | ||||
| TGVS 6 | 1,12 | 13,5 | 32 | 19 | 10 | 20 | 60 | 0,2 | 0352006100 | ||
| TGVS 8 | 2,0 | 16 | 35 | 18 | 12 | 24 | 75 | 0,4 | 0352008100 | ||
| TGVS 10 | 3,15 | 23 | 49 | 31 | 16 | 31 | 100 | 0,8 | 0352010100 | ||
| TGVS 13 | 5,3 | 27 | 61 | 37 | 20 | 38 | 124 | 1,6 | 0352013100 | ||
| TGVS 16 | 8,0 | 34 | 76 | 43 | 24 | 48 | 151 | 3 | 0352016100 | ||
| TGVS 18 | 10,0 | 40 | 88 | 50 | 27 | 56 | 173 | 4,5 | 0352018100 |
