Description

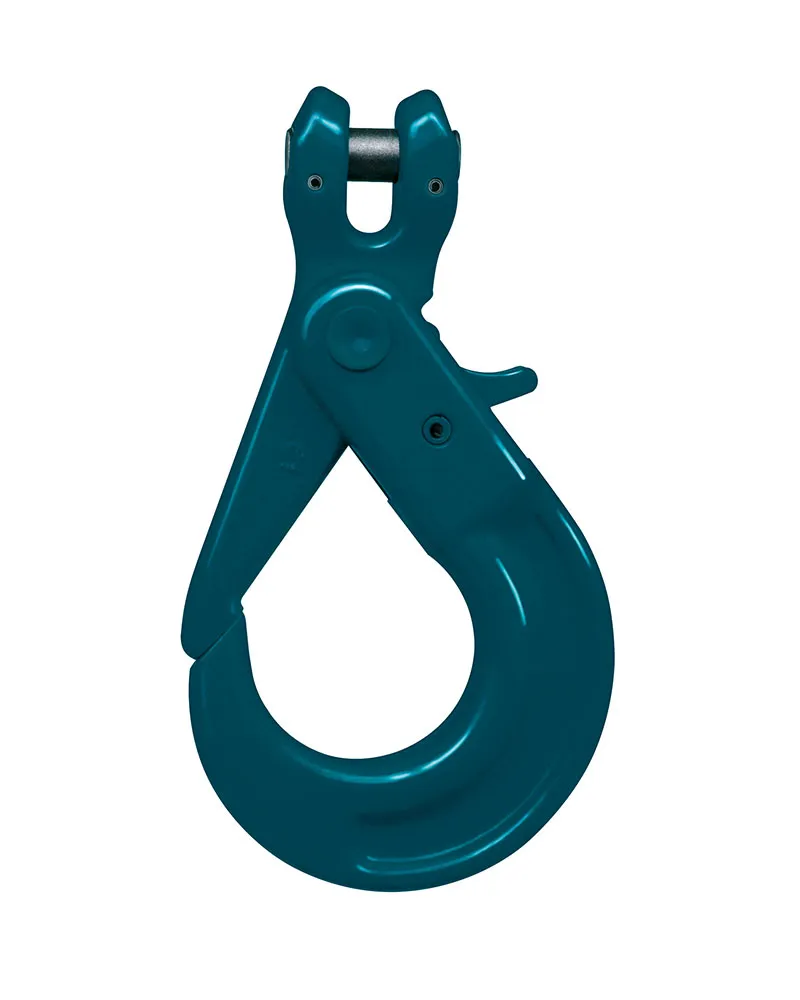

MAXNORM Self Locking hook MAHG acc. to EN 1677-2. The safety latch prevents the load from slipping out during the lifting process.

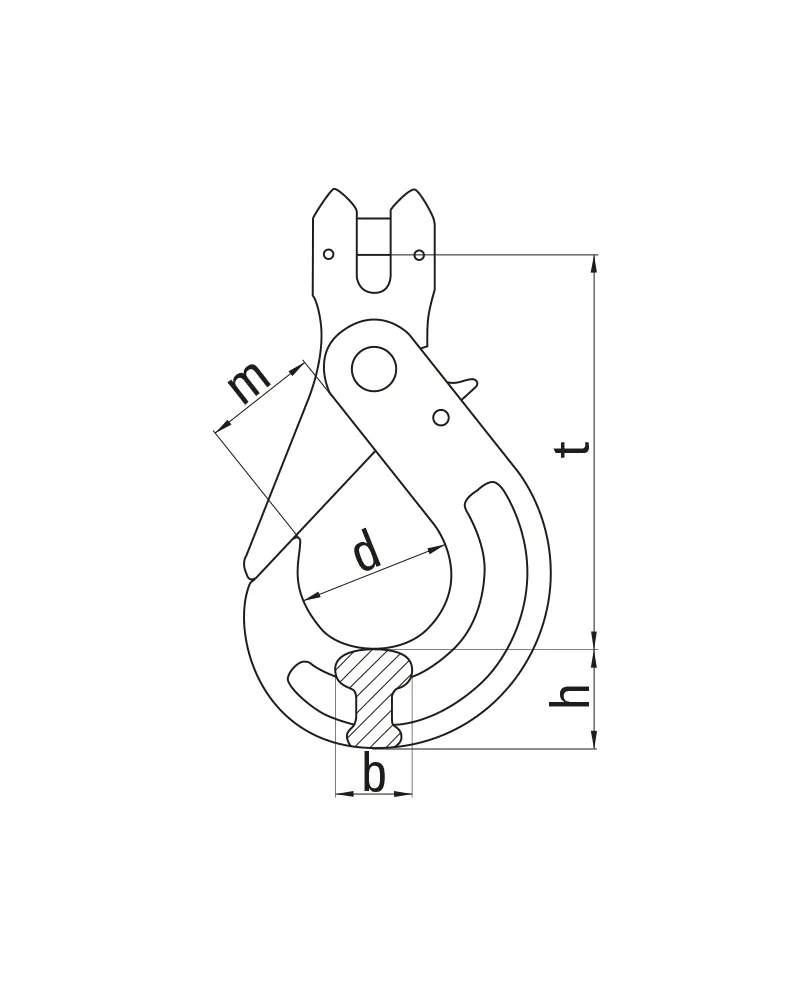

Measurements and Weight
| Code | WLL | Weight | Ident.-no. | Download 3D | ||||||
| [t] | b [mm] |
d [mm] |
m [mm] |
h [mm] |
t [mm] |
[kg] | ||||
| MAHG 6-12 | 1,8 | 22 | 45 | 35 | 26 | 118 | 0,8 | 0364106000 | ||
| MAHG 8-12 | 3,0 | 26 | 57 | 45 | 29 | 141 | 1,4 | 0364108000 | ||
| MAHG 10-12 | 5,0 | 33 | 68 | 53 | 40 | 174 | 2,8 | 0364110000 | ||
| MAHG 13-12 | 8,1 | 39 | 93 | 83 | 50 | 215 | 6,0 | 0364113000 | ||
| MAHG 16-12 | 12,5 | 44 | 97 | 89 | 57 | 235 | 8,5 | 0364116000 |
