Description

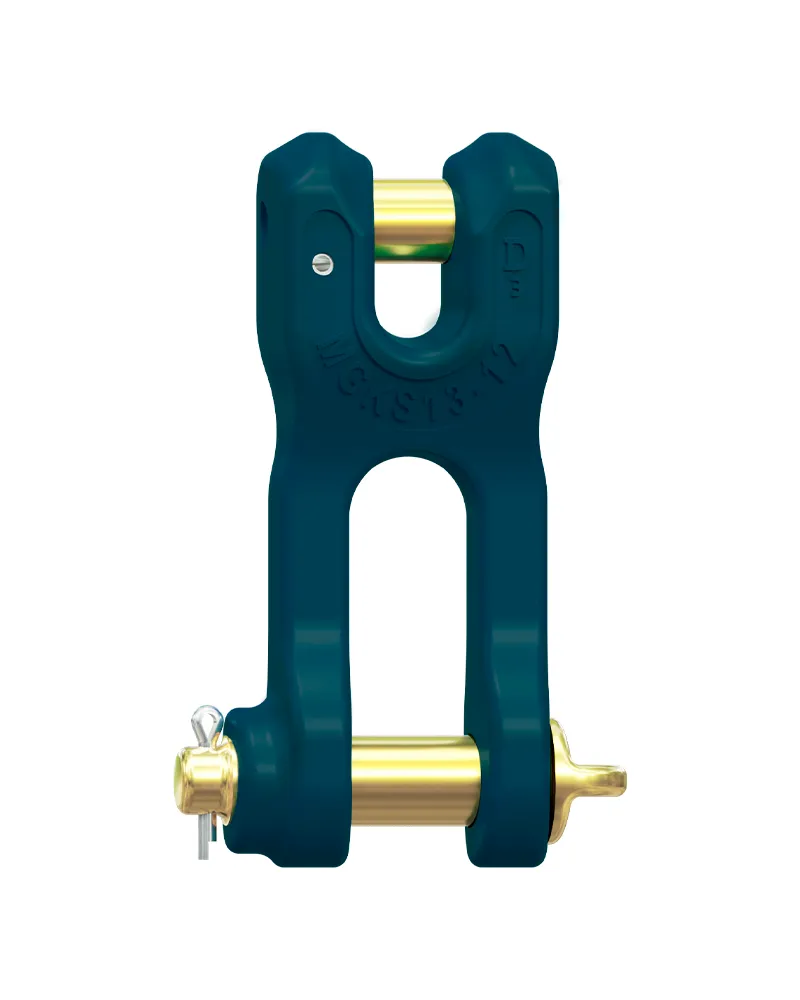

The MGKS in a a robust forged design are used as end fittings in chain slings. With an integrated safety thread in the shackkle bracket.
Alternatively, the clevis shackle can be mounted directly on straps and traverses.
measurements and weight
| Code | WLL | Weight | Ident no. | Download 3D | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a [mm] |
b [mm] |
c [mm] |
Ød [mm] |
e [mm] |
f [mm] |
t [mm] |
[kg] | ||||||
| MGKS 6 | 1,8 | 14 | 33 | 20 | 10 | 30 | 37 | 51 | 0,21 | 0352806000 | |||
| MGKS 8 | 3,0 | 16 | 44 | 24 | 12 | 34 | 42 | 63 | 0,41 | 0352808000 | |||
| MGKS 10 | 5,0 | 23 | 52 | 31 | 16 | 49 | 57 | 84 | 0,82 | 0352810000 | |||
| MGKS 13 | 8,1 | 27 | 65 | 38 | 20 | 61 | 71 | 102 | 1,66 | 0352813000 | |||
| MGKS 16 | 12,5 | 34 | 83 | 48 | 24 | 73 | 88 | 124 | 3,16 | 0352816000 |
