Description

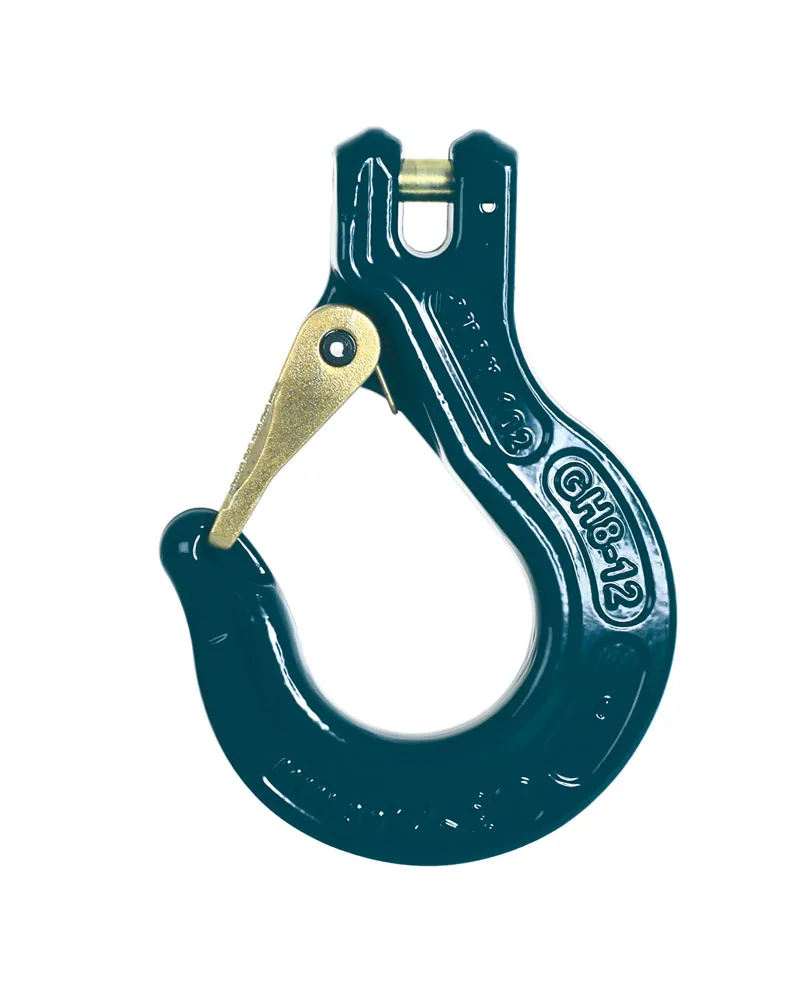

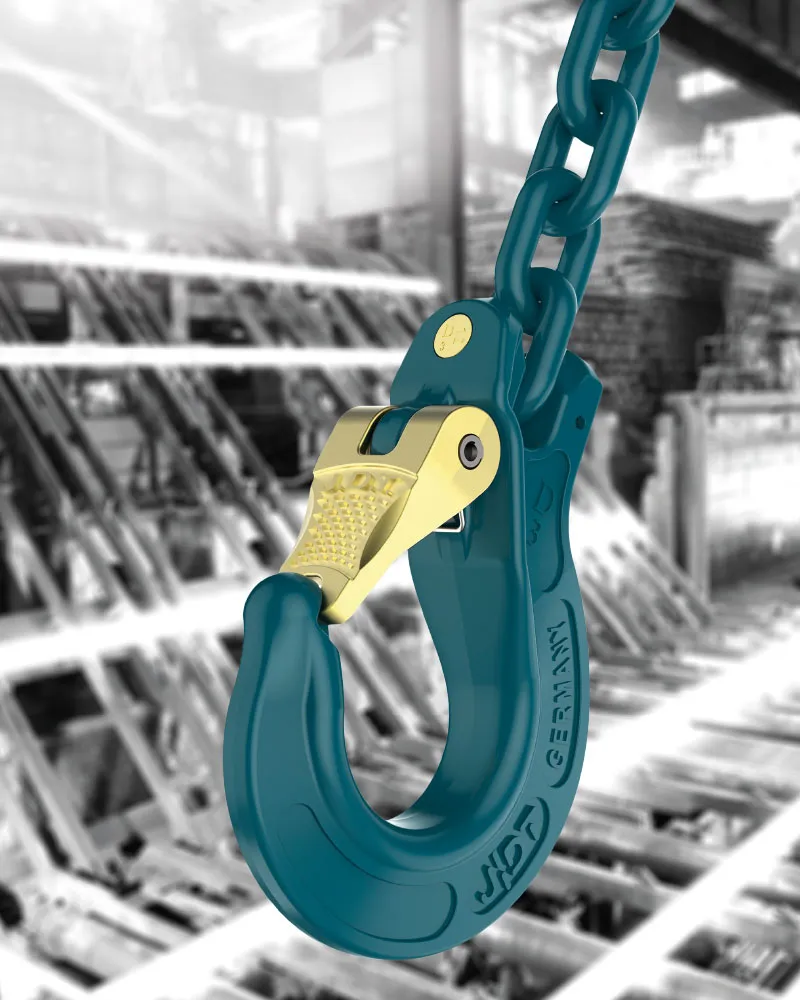

MAXNORM clevis sling hook MGH acc. to EN 1677-2.
The safety latch prevents the load from slipping out during the lifting process.

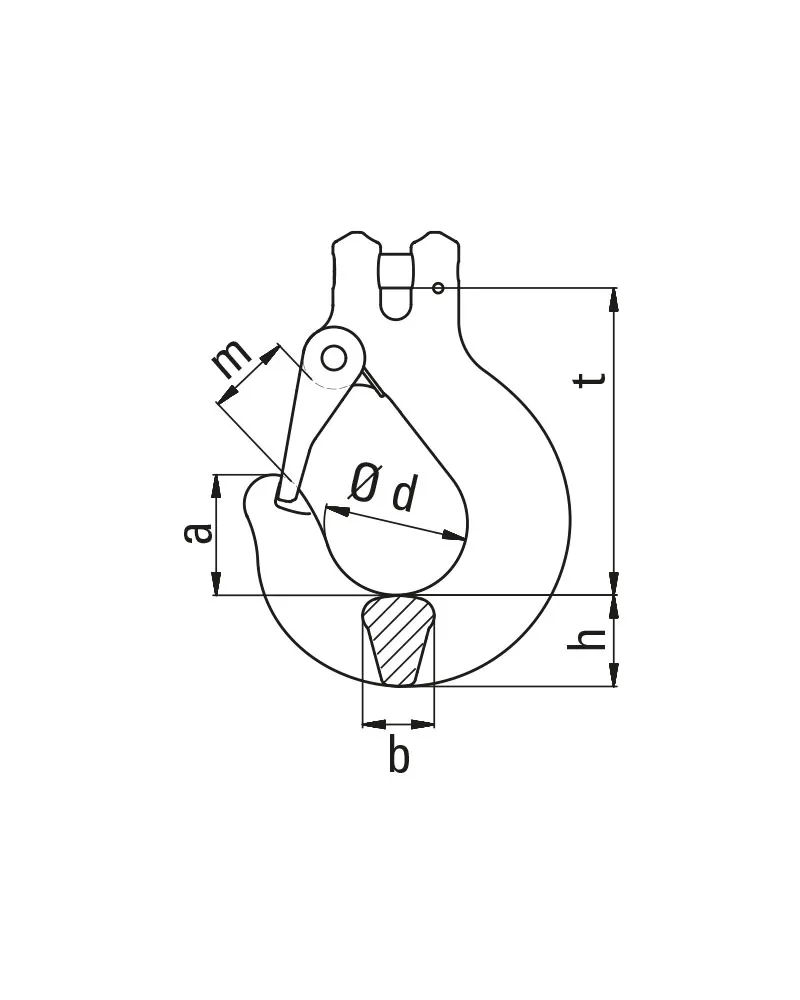

measurements and weight
| Code | WLL | Weight | Ident no. | Download 3D | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [t] | a [mm] |
b [mm] |
d [mm] |
h [mm] |
m [mm] |
t [mm] |
[kg] | |||||
| MGH 6 | 1,8 | 44 | 20 | 48 | 24 | 31 | 100 | 0,6 | 0364006000 | |||
| MGH 8 | 3,0 | 52 | 27 | 54 | 32 | 38 | 123 | 1,5 | 0364008000 | |||
| MGH 10 | 5,0 | 67 | 32 | 70 | 36 | 47 | 146 | 2,5 | 0364010000 | |||
| MGH 13 | 8,1 | 62 | 37 | 74 | 47 | 51 | 158 | 4,0 | 0364013000 | |||
| MGH 16 | 12,5 | 71 | 43 | 72 | 49 | 54 | 180 | 6,1 | 0364016000 |
