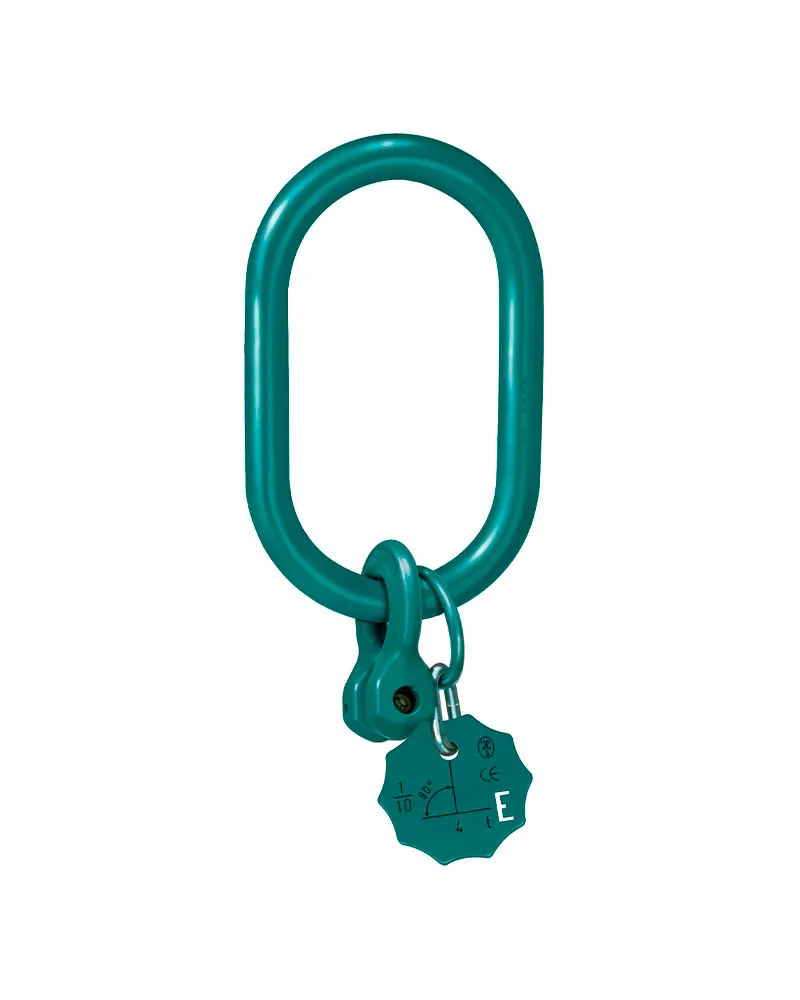

ENORM Special master assemblies ESAK 1 with clevis connector, for crane hooks up to no. 8 – no. 40 EN

ENORM Special master assemblies ESAK 1 with clevis connector, for crane hooks up to no. 8 – no. 40 EN

Category Tag

Description

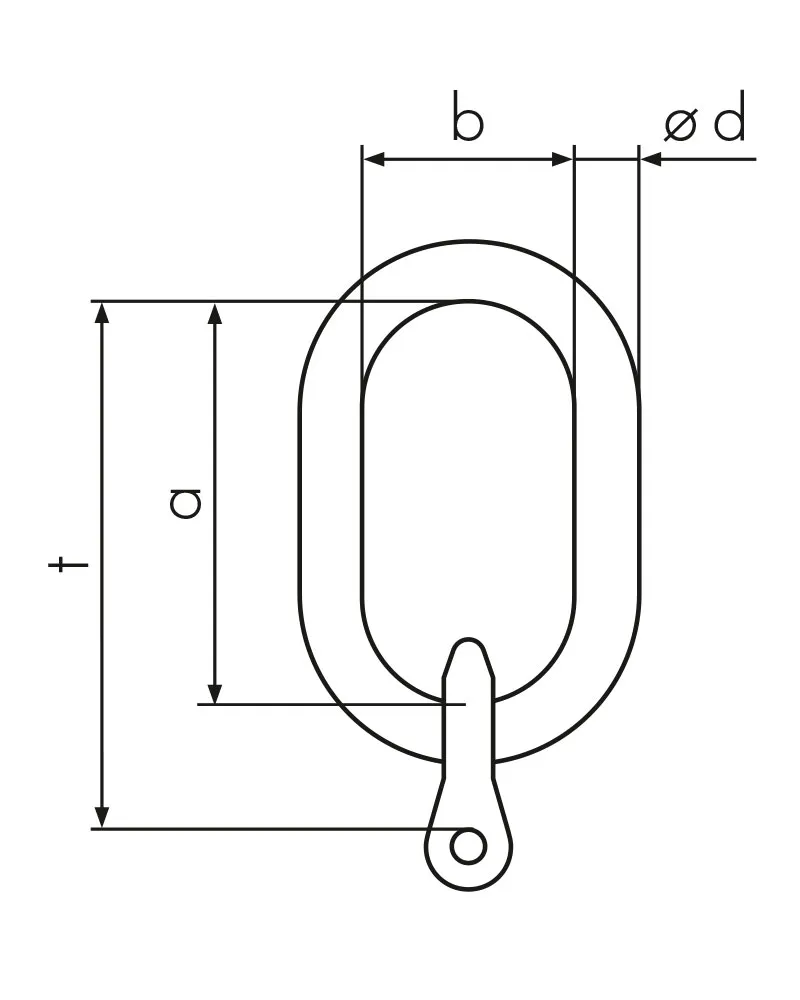

measurements and weight

for crane hooks up to no. 8 (DIN 15400 / DIN 15401)

For the size 16-22 mm the ENORM Master link EA1 fits.
Code WLL Weight Ident no. Download 3D
[t] ød
[mm]		 a
[mm]		 b
[mm]		 t
[mm]		 [kg]
ESAK 1-6-8 1,4 16 180 100 210 1,0 0332506000
ESAK 1-8-8 2,5 18 180 100 221 1,4 0332508000
ESAK 1-10-8 4,0 20 180 100 231 1,9 0332510000
ESAK 1-13-8 6,7 22 180 100 243 2,6 0332513000

measurements and weight

for crane hooks up to no. 16 (DIN 15400 / DIN 15401)

For the size 22 mm the ENORM Master link EA 1 fits.
Code WLL Weight Ident no. Download 3D
[t] ød
[mm]		 a
[mm]		 b
[mm]		 t
[mm]		 [kg]
ESAK 1-6-16 1,4 18 260 140 344 1,9 0332806000
ESAK 1-8-16 2,5 20 260 140 301 2,2 0332808000
ESAK 1-10-16 4,0 22 260 140 311 2,8 0332810000
ESAK 1-13-16 6,7 26 260 140 323 4,1 0332813000
ESAK 1-16-16 10,0 30 260 140 338 6 0332816000
ESAK 1-18-16 12,5 34 260 140 349 8 0332818000

measurements and weight

for crane hooks up to no. 25(DIN 15400 / DIN 15401)

Code WLL Weight Ident No. Download 3D
[t] ød
[mm]		 a
[mm]		 b
[mm]		 t
[mm]		 [kg]
ESAK 1-6-25 1,4 20 340 180 440 3 0333106000
ESAK 1-8-25 2,5 22 340 180 451 3,7 0333108000
ESAK 1-10-25 4,0 24 340 180 391 3,9 0333110000
ESAK 1-13-25 6,7 28 340 180 403 5,8 0333113000
ESAK 1-16-25 10,0 32 340 180 418 7,8 0333116000
ESAK 1-18-25 12,5 38 340 180 429 11,3 0333118000
ESAK 1-22-25 19,0 40 340 180 444 14,9 0333122000

measurements and weight

for crane hooks up to no. 40 (DIN 15400 / DIN 15401)

Code WLL Weight Ident No. Download 3D
[t] ød
[mm]		 a
[mm]		 b
[mm]		 t
[mm]		 [kg]
ESAK 1-6-40 1,4 20 430 220 530 3,6 0333406000
ESAK 1-8-40 2,5 24 430 220 541 4,9 0333408000
ESAK 1-10-40 4,0 26 430 220 481 5,6 0333410000
ESAK 1-13-40 6,7 30 430 220 493 7,7 0333413000
ESAK 1-16-40 10,0 34 430 220 508 10,5 0333416000
ESAK 1-18-40 12,5 40 430 220 519 14,4 0333418000
ESAK 1-22-40 19,0 45 430 220 534 19,7 0333422000
