Description

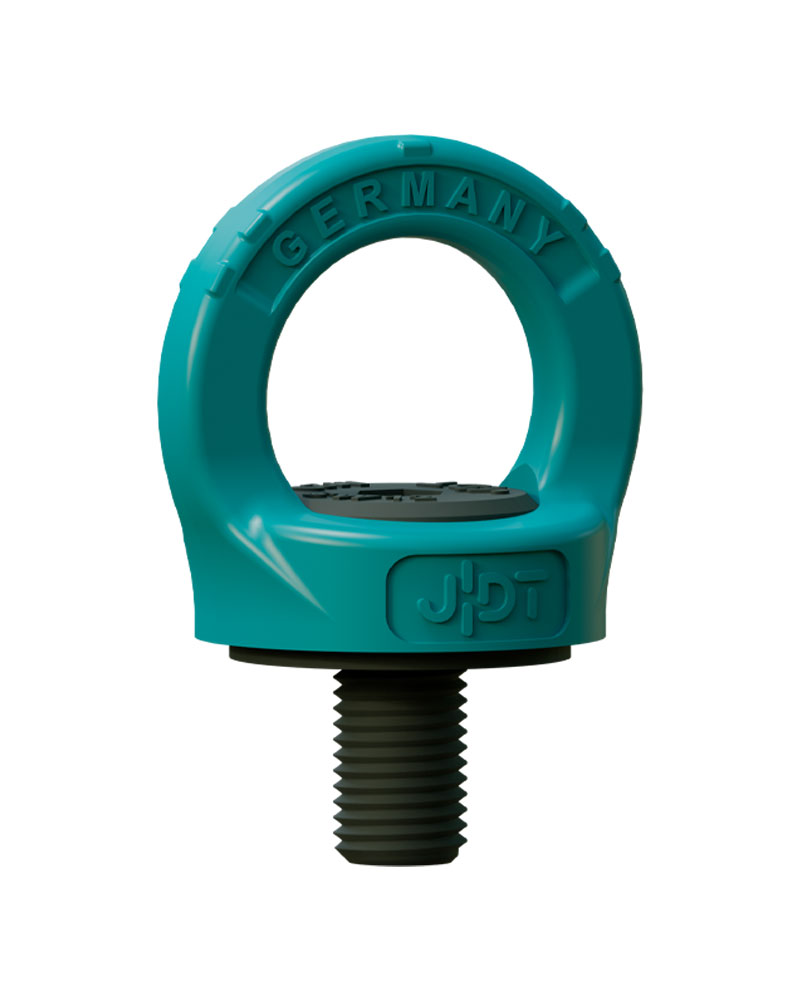

The Ring Point has a unique and patented design which allows the toolless assembly and disassembly.
With RFID -chip available.
MEASUREMENTS AND WEIGHT
| Code | Thread version | Pitch | Weight | Ident no. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D x e (mm) | DIN 13 | a mm |
b mm |
c mm |
d mm |
f mm |
t mm |
n mm |
kg | ||||
| RP 0,7 | M 12×18 | 1,8 | 38 | 13 | 7 | 34 | 60 | 49 | 8 | 0,3 | 0382100000 | ||
| RP 1,5 | M 16×20 | 2,0 | 42 | 14 | 10 | 36 | 64 | 51 | 10 | 0,4 | 0382101000 | ||
| RP 2,3 | M 20×30 | 2,5 | 50 | 15 | 12 | 46 | 76 | 61 | 12 | 0,7 | 0382102000 | ||
| RP 3,2 | M 24×30 | 3,0 | 64 | 19 | 15 | 52 | 90 | 74 | 14 | 1,2 | 0382103000 | ||
| RP 4,5 | M 30×35 | 3,5 | 75 | 25 | 19 | 62 | 112 | 91 | 17 | 2,2 | 0382104000 | ||
