Description

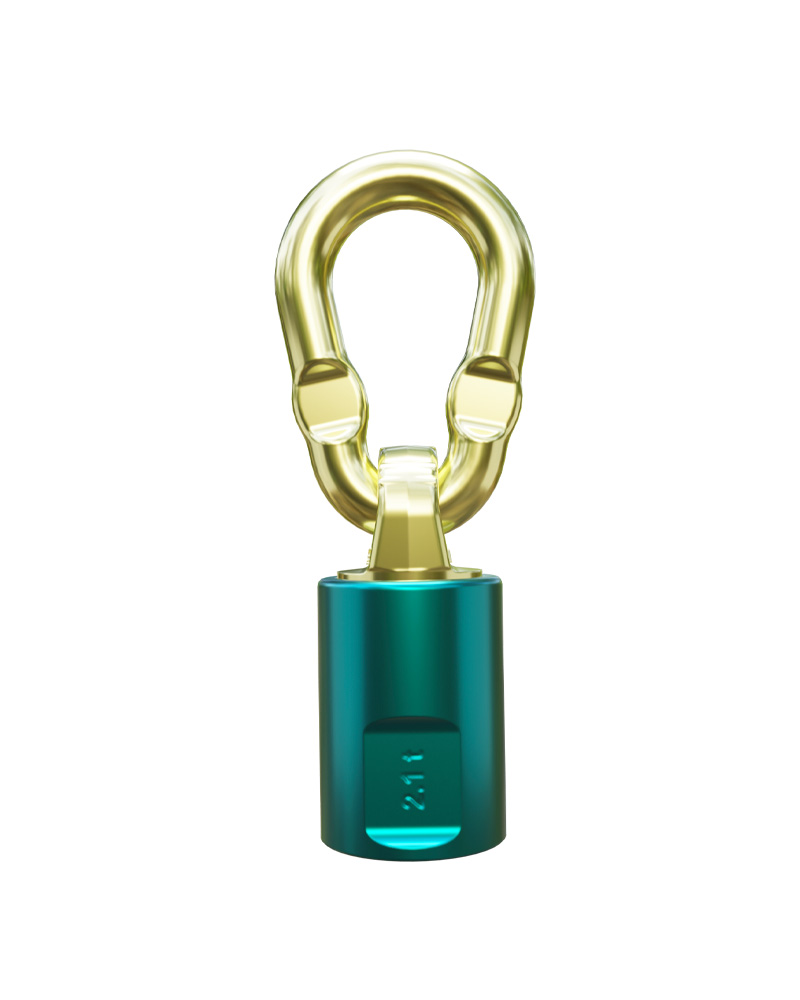

Attachment swivel TP-F with internal thread and ball bearing. Crimpfeature on the link prevents the link from kinking.
The galvanized coating provides an optimal corrosion protection.
Bolts of the quality class 10.9 crack-tested are permitted as connecting elements.
Othe threads and lenghts are available on request (TPSO).
With RFID -chip available.
MEASUREMENTS AND WEIGHT
| Code | Thread version | Tightening torque | Pitch | Link | Weight | Ident no. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d x e [mm] |
[Nm] | DIN 13 | a [mm] |
Øb [mm] |
g [mm] |
SW [mm] |
t [mm] |
Øxt1 x b1 [mm] |
[kg] | ||||
| TP-F 0,5 | M 12 x 15 | 15 – 40 | 1,75 | 45 | 36,5 | 73 | 34 | 66 | 13x55x32 | 0,61 | 0381800000 | ||
| TP-F 1 | M 16 x 20 | 45 – 130 | 2,0 | 52 | 36,5 | 80 | 34 | 73 | 13x55x32 | 0,65 | 0381801000 | ||
| TP-F 1,7 | M 20 x 25 | 100 – 170 | 2,5 | 66 | 52 | 106 | 46 | 95 | 16x70x34 | 1,5 | 0381802000 | ||
| TP-F 2,1 | M 24 x 30 | 190 – 280 | 3,0 | 80 | 57 | 120 | 50 | 108 | 18x85x45 | 2,12 | 0381804000 | ||
| TP-F 3,2 | M 30 x 40 | 230 – 400 | 3,5 | 94 | 70 | 148 | 65 | 131 | 20x85x46 | 3,7 | 0381806000 | ||
| TP-F 5 | M 36 x 45 | 270 – 600 | 4,0 | 107 | 80 | 164 | 75 | 145 | 23x115x60 | 5,75 | 0381808000 |
