Description

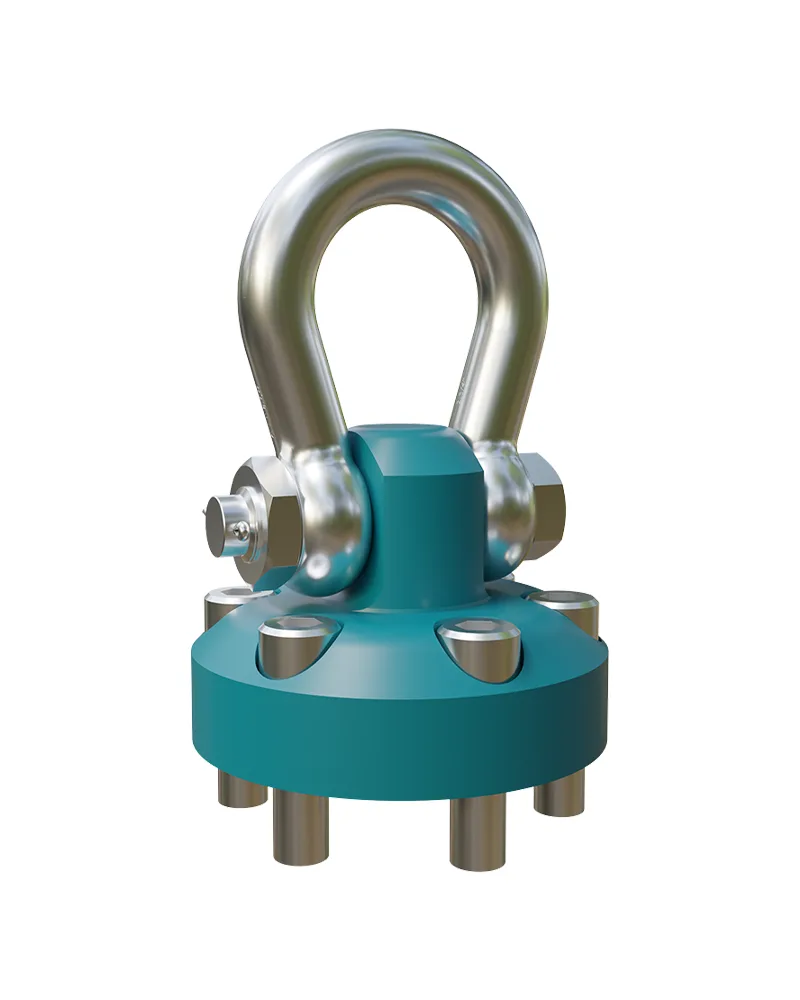

The MEGA Lifting Point MLP is the powerful solution for lifting extremely heavy loads. Designed for maximum load capacity and safety, this heavy-duty lifting point impresses with its compact design, ergonomic shape, and highly efficient load distribution.
Thanks to its robust construction, the MLP offers high resistance to friction and can be used at a load angle of 90° with full Working Load Limit (WLL). Crack-tested bolts are included in th
| Code | Pitch | Weight | Ident no. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIN 13 | a mm |
b mm |
d mm |
f mm |
t mm |
l mm |
|||||||
| MLP 85 | 6x M 48 x 75 | 5 | 400 | 70 | 180 | 320 | 505 | 209 | 141 | 42 | 0381385000 | ||
| MLP 100 | 6x M 48 x 75 | 5 | 400 | 80 | 190 | 350 | 592 | 271 | 145 | 70 | 0381310000 | ||
| MLP 120 | 6x M 48 x 75 | 5 | 571 | 80 | 190 | 350 | 615 | 255 | 292 | 70 | 0381312000 | ||
| MLP 200 | 10x M 48 x 75 | 5 | 650 | 110 | 275 | 484 | 833 | 393 | 439 | 183 | 0381320000 | ||
| MLP 250 | 12x M 48 x 75 | 5 | 730 | 120 | 300 | 540 | 965 | 450 | 656 | 255 | 0381325000 |
e delivery and ensure quick and secure installation.
