Description

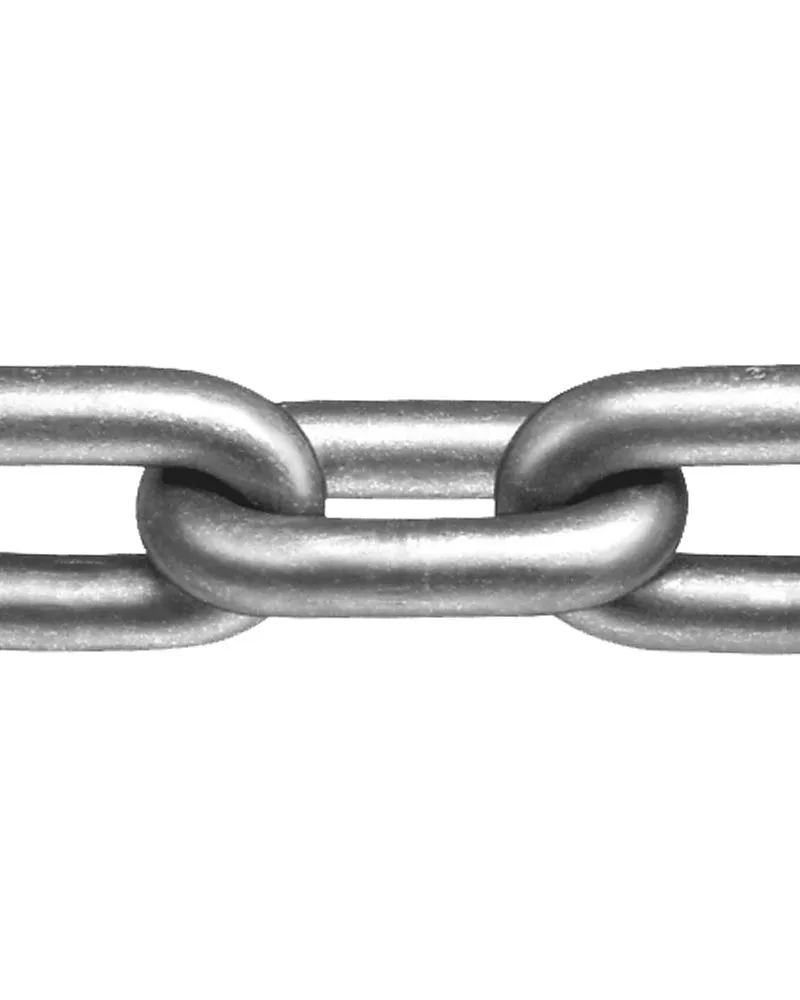

Special versions of round link chains acc. to DIN 22252 for use as mining chains, conveyor chains, plough chains or bucket elevator chains. Versions as crown hardened chain, e.g. for plough chains or as special chains with high hardness and strength for defined operating conditions.
Measurements and weight
| Nominal size | diameter | pitch | thickness | thickness | weight |
|---|---|---|---|---|---|
| d x t [mm] |
d [mm] |
t [mm] |
b1 min. [mm] |
b2 max. [mm] |
[kg/m] |
| 26 x 92 | 26±0,8 | 92±0,9 | 30 | 85 | 14 |
| 30 x 108 | 30±0,9 | 108±1,1 | 34 | 97 | 17,8 |
| 34 x 126 | 34±1,0 | 126±1,3 | 38 | 109 | 23 |
| 38 x 137 | 38±1,1 | 137±1,4 | 42 | 121 | 28,8 |
