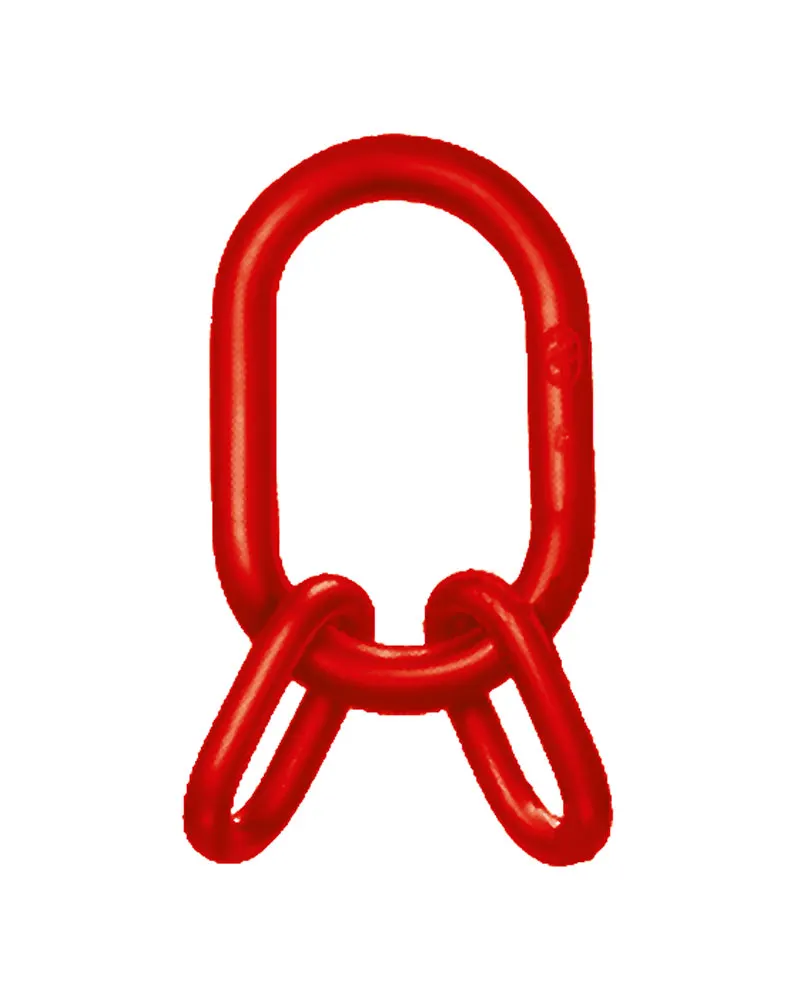

NORM8 Special master link assembly TAS 3/4, for crane hooks up to no. 8 – no. 40 EN

NORM8 Special master link assembly TAS 3/4, for crane hooks up to no. 8 – no. 40 EN

Category Tag

Description

NORM8 special master link in Grade 8 for crane hooks up to no. 40 (DIN 15400/DIN 15401).

measurements and weight

for crane hooks up to no. 8 (DIN 15400 / DIN 15401)

For all other sizes, the standard links according to DIN 5688-3 fit.
Code WLL Weight Ident no. Download 3D
0°-45°
[t]		 45°-60°
[t]		 ød/ød1
[mm]		 t/t1
[mm]		 b/b1
[mm]		 [kg]
TAS 3/4–6-8 2,36 1,7 20 / 13 180 / 54 100 / 25 1,8 0330306000
TAS 3/4–8-8 4,25 3,0 22 / 16 180 / 70 100 / 34 2,5 0330308000

measurements and weight

for crane hooks up to no. 16 (DIN 15400 / DIN 15401)

For all other sizes, the standard links according to DIN 5688-3 fit.
Code WLL Weight Ident no. Download 3D
0°-45°
[t]		 45°-60°
[t]		 ød/ød1
[mm]		 t/t1
[mm]		 b/b1
[mm]		 [kg]
TAS 3/4–6-16 2,36 1,7 22 / 13 260 / 54 140 / 25 2,8 0330606000
TAS 3/4–8-16 4,25 3,0 26 / 18 260 / 85 140 / 40 4,5 0330608000
TAS 3/4–10-16 6,7 4,75 30 / 18 260 / 85 140 / 40 5,7 0330610000
TAS 3/4–13-16 11,2 8,0 34 / 22 260 / 115 140 / 50 8 0330613000

measurements and weight

for crane hooks up to no. 25 (DIN 15400 / DIN 15401)

For all other sizes, the standard links according to DIN 5688-3 fit.
Code WLL Weight Ident no. Download 3D
0°-45°
[t]		 45°-60°
[t]		 ød/ød1
[mm]		 t/t1
[mm]		 b/b1
[mm]		 [kg]
TAS 3/4–6-25 2,36 1,7 24 / 13 340 / 54 180 / 25 3,8 0330906000
TAS 3/4–8-25 4,25 3,0 29 / 18 340 / 85 180 / 40 6,3 0330908000
TAS 3/4–10-25 6,7 4,75 32 / 18 340 / 85 180 / 40 7,3 0330910000
TAS 3/4–13-25 11,2 8,0 38 / 22 340 / 115 180 / 50 11,2 0330913000
TAS 3/4-16-25 17,0 11,8 42 / 26 340 / 140 180 / 65 15 0330916000

measurements and weight

for crane hooks up to no. 40 (DIN 15400 / DIN 15401)

For all other sizes, the standard links according to DIN 5688-3 fit.
Code WLL Weight Ident no. Download 3D
0°-45°
[t]		 45°-60°
[t]		 ød/ød1
[mm]		 t/t1
[mm]		 b/b1
[mm]		 [kg]
TAS 3/4–6-40 2,36 1,7 26 / 13 430 / 70 220 / 34 5,4 0331206000
TAS 3/4–8-40 4,25 3,0 30 / 18 430 / 85 220 / 40 8 0331208000
TAS 3/4–10-40 6,7 4,75 34 / 22 430 / 115 220 / 50 11,2 0331210000
TAS 3/4–13-40 11,2 8,0 40 / 26 430 / 140 220 / 65 15,8 0331213000
TAS 3/4–16-40 17,0 11,8 42 / 26 430 / 140 220 / 65 17,6 0331216000
TAS 3/4–18-40 21,2 15,0 48 / 32 430 / 150 220 / 70 23,8 0331218000
TAS 3/4–20/22-40 31,5 22,4 54 / 36 430 / 170 220 / 75 31,6 0331222000
TAS 3/4–26-45 45,0 31,5 60 / 40 430 / 170 220 / 80 39,9 0331226000
