Description

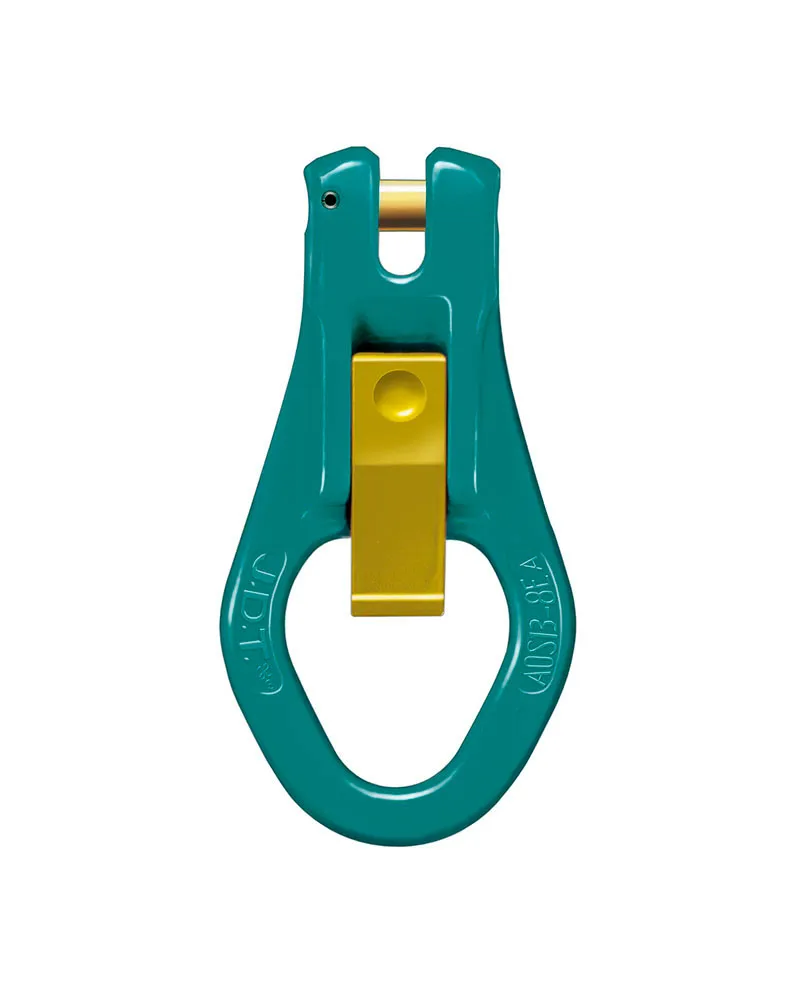

ENORM Quick latch for multi bucket systems EAOS acc. to EN 1677-1.
JDT hooks are designed in such a way that in case of overload they do not break brittle, but hook opening visually increases and lets the load slowly slide down.

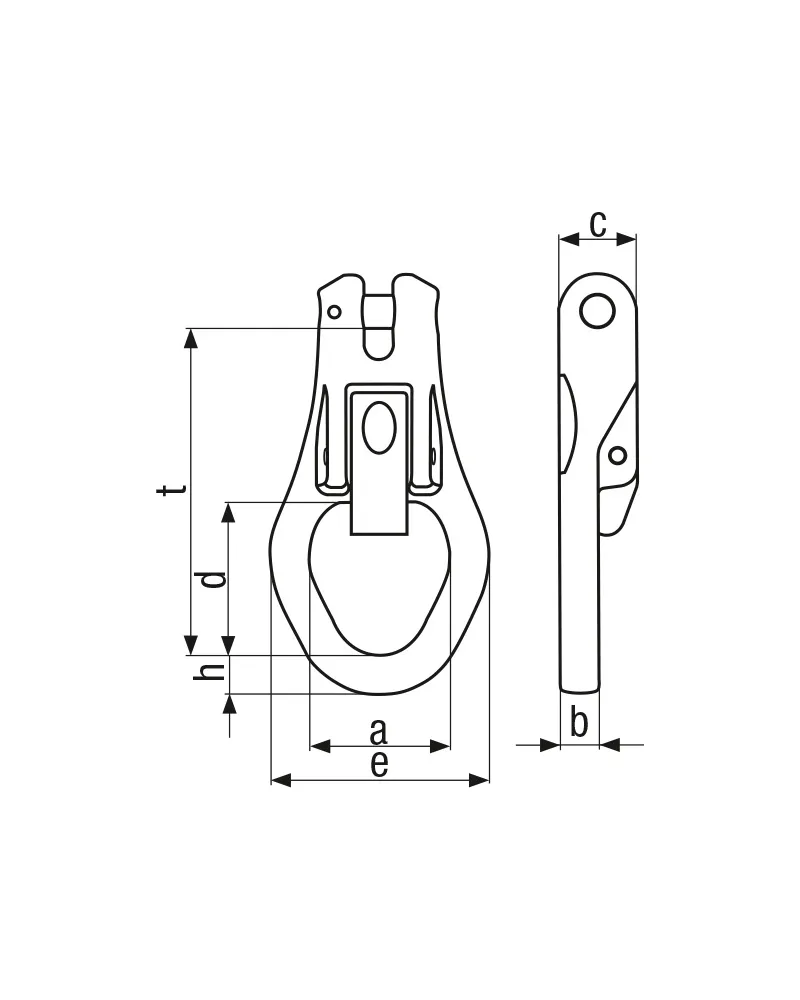

measurements and weight
| Code | WLL | Weight | Ident no. | Download 3D | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [t] | a [mm] |
b [mm] |
c [mm] |
d [mm] |
e [mm] |
h [mm] |
t [mm] |
[kg] | ||||
| EAOS 13 | 6,7 | 72 | 20 | 40 | 79 | 112 | 20 | 168 | 2,5 | 0363513000 | ||
| EAOS 16 | 10,0 | 72 | 20 | 40 | 79 | 112 | 20 | 166 | 2,6 | 0363516000 |
