Description

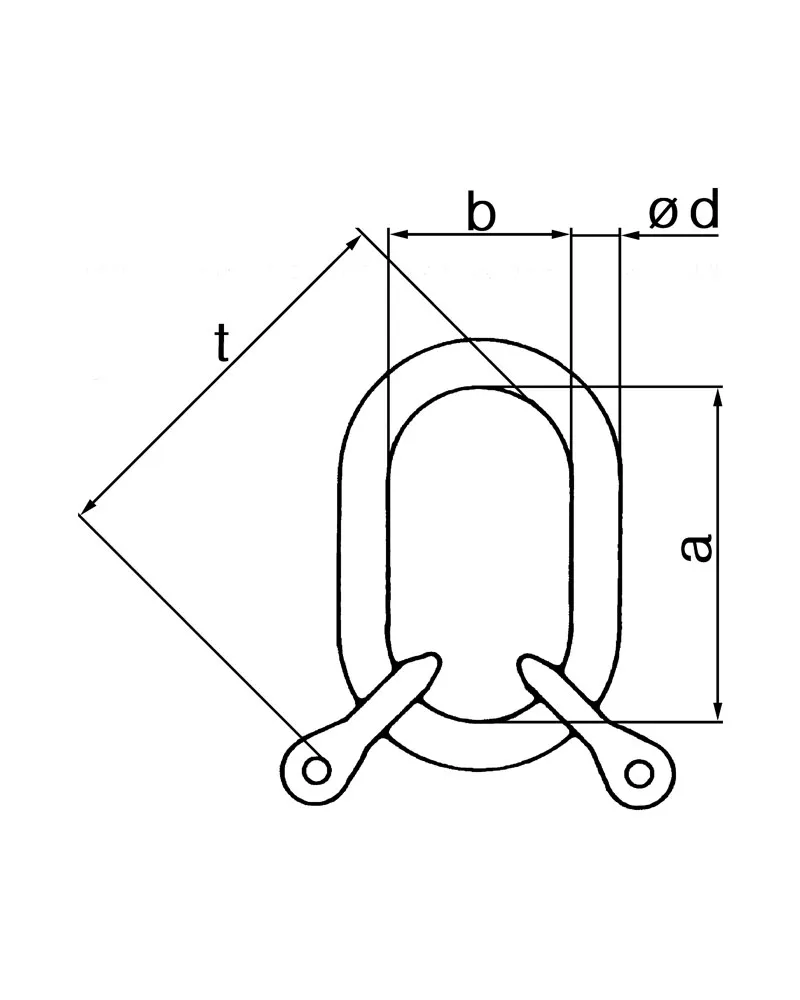

Maße und Gewicht
| Code | WLL | WLL | Weight | Ident no. | Download 3D | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0°-45° [t] |
45°-60° [t] |
ød [mm] |
a [mm] |
b [mm] |
t [mm] |
[≈kg] | ||||
| ENORM EB 2-6 | 2,0 | 1,4 | 13 | 54 | 25 | 84 | 0,5 | 0321506000 | ||
| ENORM EB 2-8 | 3,55 | 2,5 | 16 | 70 | 34 | 111 | 1 | 0321508000 | ||
| ENORM EB 2-10 | 5,6 | 4,0 | 18 | 85 | 40 | 136 | 1,5 | 0321510000 | ||
| ENORM EB 2-13 | 9,5 | 6,7 | 22 | 115 | 50 | 178 | 2,7 | 0321513000 | ||
| ENORM EB 2-16 | 14,0 | 10,0 | 26 | 140 | 65 | 218 | 5,7 | 0321516000 | ||
| ENORM EB 2-18 | 18,0 | 12,5 | 32 | 150 | 70 | 239 | 7,6 | 0321518000 | ||
| ENORM EB 2-22 | 26,5 | 19,0 | 36 | 170 | 75 | 274 | 10,3 | 0321522000 |
